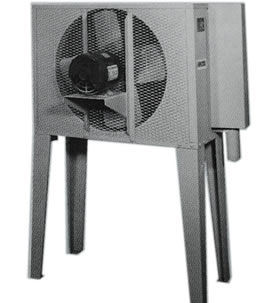

IPAC Air Cooled Aftercoolers |
| A Series: |
| Sales, Service & Support |
| |
 |
| |
|
| |
| |
Copper Tubes |
| |
External Aluminum Fins |
| |
Axial Fan(s) |
| |
Front and Rear Guards |
| |
Heavy Duty Sheet metal Cabinets |
| |
Max Working Pressure 230 PSIG |
|
| |
|
| |
| |
Air Motors with Mufflers |
| |
Low Ambient Control Packages |
| |
Special Coatings (Corrosion Resistant) |
| |
Alternate Materials - Fin, Tube, Housing |
| |
Custom Designs Available |
| |
 |
|
|
|
| |
| |
Products Available: |
| |
| |
Model No.** |
SCFM Capacity* |
Fan H.P.** |
Air In & Out
Connections |
| |
2 Stage |
Rotary |
| |
A00500BO |
20 |
24 |
1/20 |
1 NPT |
| |
A01000BO |
35 |
42 |
1/20 |
1 NPT |
| |
A02000BO |
70 |
84 |
1/20 |
1 1/2 NPT |
| |
A03000BO |
105 |
126 |
1/20 |
1 1/2 NPT |
| |
A05000BO |
175 |
210 |
1/8 |
2 NPT |
| |
A08030BO |
280 |
336 |
1/4 |
2 1/2 NPT |
| |
A12030BO |
420 |
504 |
3/4 |
3 FLG |
| |
A16030BO |
565 |
678 |
3/4 |
3 FLG |
| |
A20030BO |
700 |
840 |
3/4 |
4 FLG |
| |
A24030BO |
850 |
1020 |
1.5 |
4 FLG |
| |
A32030BO |
1130 |
1356 |
1.5 |
5 FLG |
| |
A40030BO |
1400 |
1680 |
1.5 |
5 FLG |
| |
A48030BO |
1700 |
2040 |
2 x 1.5 |
6 FLG |
| |
A64030BO |
2250 |
2700 |
2 x 1.5 |
6 FLG |
| |
A75030BO |
2650 |
3180 |
2 x 1.5 |
6 FLG |
| |
*Ambient Temp 60F, 50%RH, Inlet Temp 250F Cooling within 15F of Ambient Temp. **A005-A05 are 115V Single Phase. All others are 230-460V/3 Phase |
|
|
|
| |
| |
Dimensions: |
| |
| |
Model No. |
SCFM Capacity* |
Dimensions (Inches) |
Air In & Out
Connections |
Weight (lbs) |
| |
2 Stage |
Rotary |
A |
B |
C |
| |
A00500BO |
20 |
24 |
34.2 |
11.5 |
18.5 |
1 NPT |
71 |
| |
A01000BO |
35 |
42 |
34.2 |
11.5 |
18.5 |
1 NPT |
71 |
| |
A02000BO |
70 |
84 |
42.5 |
14.1 |
22.5 |
1 1/2 NPT |
105 |
| |
A03000BO |
105 |
126 |
42.5 |
14.1 |
22.5 |
1 1/2 NPT |
105 |
| |
A05000BO |
175 |
210 |
46.0 |
16.6 |
26.5 |
2 NPT |
150 |
| |
A08030BO |
280 |
336 |
47.5 |
21.8 |
36.5 |
2 1/2 NPT |
280 |
| |
A12030BO |
420 |
504 |
56.2 |
28.5 |
45.2 |
3 FLG |
343 |
| |
A16030BO |
565 |
678 |
56.2 |
28.5 |
45.2 |
3 FLG |
385 |
| |
A20030BO |
700 |
840 |
78.2 |
43.2 |
56.0 |
4 FLG |
590 |
| |
A24030BO |
850 |
1020 |
78.2 |
43.2 |
56.0 |
4 FLG |
673 |
| |
A32030BO |
1130 |
1356 |
78.2 |
43.2 |
56.0 |
5 FLG |
1070 |
| |
A40030BO |
1400 |
1680 |
78.2 |
44.2 |
56.0 |
5 FLG |
1213 |
| |
A48030BO |
1700 |
2040 |
78.2 |
44.2 |
106.2 |
6 FLG |
1400 |
| |
A64030BO |
2250 |
2700 |
78.2 |
44.2 |
106.2 |
6 FLG |
1900 |
| |
A75030BO |
2650 |
3180 |
78.2 |
44.2 |
106.2 |
6 FLG |
2200 |
|
|
| |
