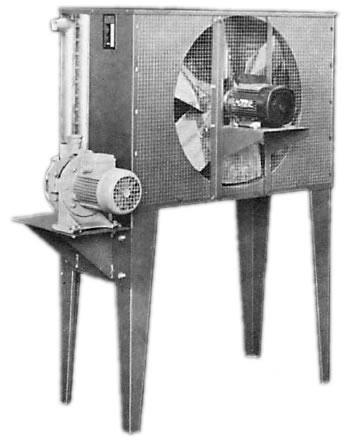

IPAC Closed Circuit Water Coolers (W.A.C.)

WAC Series:

Sales, Service & Support

Materials of Construction:

	Copper Tubes
	External Aluminum Fins
	Axial Fan(s)
	Front and Rear Guards
	Heavy Duty Steel or Aluminum Casing
	3 Phase ODP Motors

Industrial Closed Circut Water Cooling.

Standard Packages for up to 500,000 BTU/HR capacity. Special order for up to 3 Millon BTU/HR capacity.
- Supplied with or without Integral pump or remote pump package
- Self contained with starter, expansion tank, and 3-way valve piped and wired for hook-up.
-Water Flows as little as 5 gpm.
-Totaly enclosed motor available

If you have questions about how a our Closed Circut Water Coolers will benefit your application, or would like a quote please contact us: 1-888-226-8522

Products Available:

Model No.	Cooling Capacity BTU/HR*	Water Flow G.P.M	Pump Head Feet	Pump Motor H.P.	Fan Motor H.P.	Water Connections (Inches)	Weight (Lbs)
Model No.	Cooling Capacity BTU/HR*	Water Flow G.P.M	Pump Head Feet	Pump Motor H.P.	Fan Motor H.P.	Water Connections (Inches)	Weight (Lbs)
WAC0830A	62000	5	50	.30	.25	1 NPT	214
WAC1230B	112000	9	100	1.00	.75	1 1/4 NPT	362
WAC1630B	125000	10	100	1.00	.75	1 1/4 NPT	392
WAS2430B	175000	15	100	1.00	1.5	1 1/4 NPT	716
WAC3230B	215000	17	100	1.00	1.5	1 1/4 NPT	767
WAC4030B	240000	19	100	1.00	1.5	1 1/4 NPT	825
WAC4830C	370000	30	140	5.00	2 x 1.5	1 1/2 NPT	1614
WAC6430C	430000	34	140	5.00	2 x 1.5	1 1/2 NPT	1720
WAC7530C	476000	38	140	5.00	2 x 1.5	1 1/2	1786
*90F Ambient Air Temp. Water inlet temp 140F. Water Outlet temp 115F.

Dimensions:

Model No.	Capacity BTU/HR*	Dimensions (Inches)			Water Connections NPT	Weight (lbs)
Model No.	Capacity BTU/HR*	A	B	C	Water Connections NPT	Weight (lbs)
WAC0830A	62000	47.5	43.5	21.8	1	214
WAC1230B	112000	56.2	49.8	28.5	1 1/4	362
WAC1630B	125000	56.2	49.8	28.5	1 1/4	716
WAC2430B	175000	78.2	49.8	43.2	1 1/4	767
WAC3230B	215000	78.2	59.4	43.2	1 1/4	825
WAC4030C	370000	78.2	59.4	44.2	1 1/2	1614
WAC6430C	430000	78.2	106	44.2	1 1/2	1720
WAC7530C	476000	78.2	106	44.2	1 1/2	1786

Quotes, Engineering & Ordering Information: IPAC Heat Exchangers, please contact us: 1-888-226-8522
